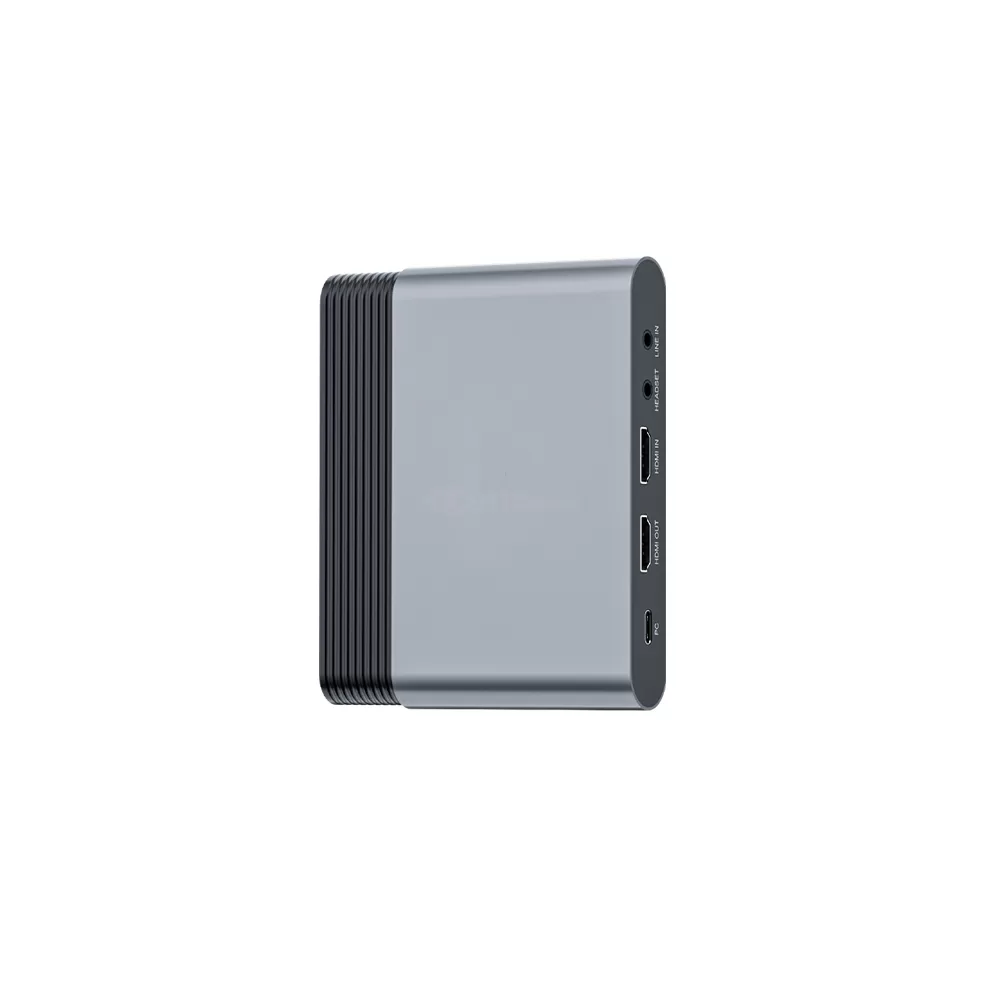

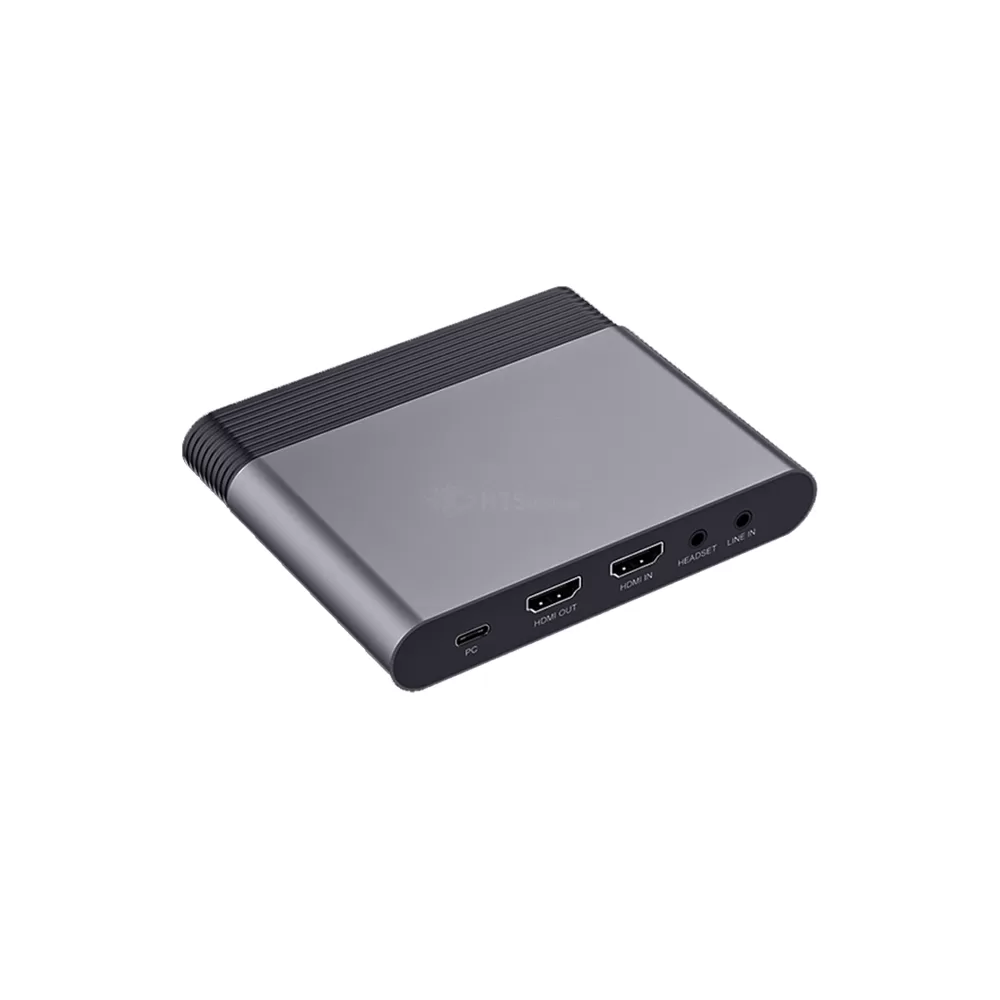

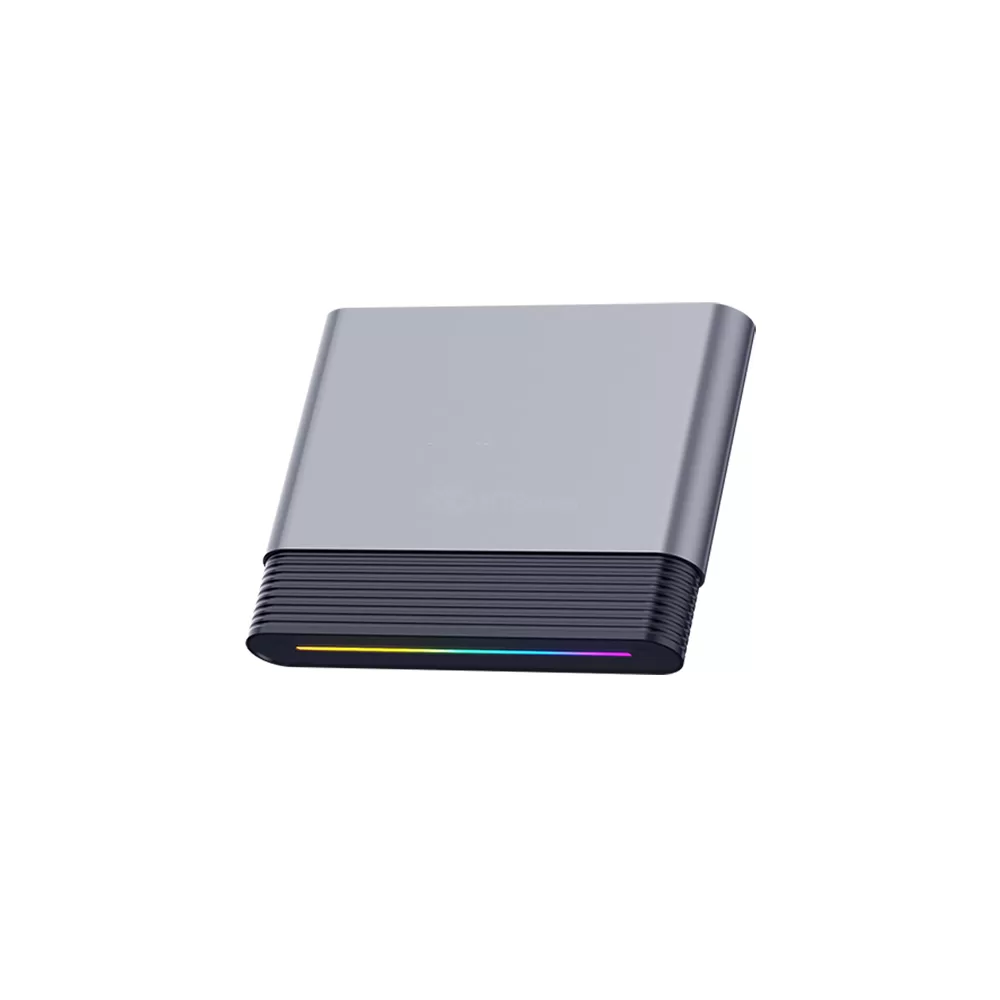

4Kp60Hz Capture and Record GamLiv Video Capture Box

4Kp60Hz Capture and Record GamLiv Video Capture Box

HTS-T900PRO-UHV ^HOT

GamLiv series video capture box features：

Support 2160p@60Hz / 1440p@144Hz / 1080p@240Hz input and output, game, motion screen without drag.
Supports a variety of video color coding, reduce CPU load, loop out without lag, real-time synchronization of game broadcast.
Plug and play, without drive installation, USB direct connection to computer / mobile phone, 3 seconds start.
Low latency transmission, USB to PC about 60ms, sound and picture synchronization without delay.
Support the OBS / XSplit / vMix and other third-party software, Windows / Linux / Mac / iOS / Android / Harmony OS system compatible.
Product support appearance design, function increase or decrease, OEM / ODM

Categories: All Products, Capture Box Tag: GamLiv

Sales Inquiry

TechSpecs

Video

Audio

Interface

Function

Support

General

Video

Resolution Capture	3840 x 2160(max 60fps), 2560 x 1440(max 144fps), 1920 x 1080(max 240fps) 1280 x 720(max 60fps), 640 x 480(max 60fps)
Loop Out	2160p60(HDR), 1440p144(VRR), 1080p240(VRR), 720p60, 480p60
Video Format	MJPEG, YUY2, P010, NV12, I420, XRGB
Color Space	Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec	PCM
Audio Input	HDMI(LPCM 5.1), TRS, CTIA
Audio Output	HDMI, CTIA
Sampling Rate	8kHz, 16kHz, 44.1kHz, 48kHz

Interface

Master Control	USB 3.2(Gen 1) Type-C
Video I/O	HDMI 2.0
Audio I/O	3.5mm Line in, 3.5mm Headset

Function

HDR	10bit HDR record of 2160p60
VRR	Support 1440p(144Hz), 1080p(240Hz) input and loop out *Without support "XBox X1" YCbCr 420 VRR input.Check and settings YCC 4:2:2 to get VRR
UVC,UAC	Support
Reset Function	None
Configure Video	Support from capture software Settings
Led Light	Colorful working lights

Support

Systen Support	Windows, Linux, macOS, iOS, Harmony OS, Android etc
Software Support	OBS, vMix, XSplit etc Third-party Software
Device Support	Phone, Tablet, PC, Xbox One, Xbox Series X \| S Playstation 4, Playstation 5 Nintendo Switch Stream Deck Other camera video signal
Service	12 months warranty
Approval	FCC, CE, RoHS (MOQ:500pcs free)

General

Power	USB 5V 2A
Material	Metal, Plastic
Work Temperature	0°C to +90°C(+32°F to +194°F)
Dimension	121 x 99 x 21 mm
Weight	210g

Video

Resolution Capture

3840 x 2160(max 60fps), 2560 x 1440(max 144fps), 1920 x 1080(max 240fps),1280 x 720(max 60fps), 640 x 480(max 60fps)

Loop Out

2160p60(HDR), 1440p144(VRR), 1080p240(VRR), 720p60, 480p60

Video Format

MJPEG, YUY2, P010, NV12, I420, XRGB

Color Space

Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec

PCM

Audio Input

HDMI(LPCM 5.1), TRS, CTIA

Audio Output

HDMI, CTIA

Sampling Rate

8kHz, 16kHz, 44.1kHz, 48kHz

Interface

Master Control

USB 3.2(Gen 1) Type-C

Video I/O

HDMI 2.0

Audio I/O

3.5mm Line in, 3.5mm Headset

Function

HDR

10bit HDR record of 2160p60

VRR

Support 1440p(144Hz), 1080p(240Hz) input and loop out
*Without support "XBox X1" YCbCr 420 VRR input.Check and settings YCC 4:2:2 to get VRR

UVC,UAC

Support

Reset Function

None

Configure Video

Support from capture software Settings

Led Light

Colorful working lights

Support

Systen Support

Windows, Linux, macOS, iOS, Harmony OS, Android etc

Software Support

OBS, vMix, XSplit etc Third-party Software

Device Support

Phone, Tablet, PC, Xbox One, Xbox Series X | S
Playstation 4, Playstation 5
Nintendo Switch
Stream Deck
Other camera video signal

Service

12 months warranty

Approval

FCC, CE, RoHS (MOQ:500pcs free)

General

Power

USB 5V 2A

Material

Metal, plastic

Work Temperature

0°C to +90°C(+32°F to +194°F)

Dimension

121 x 99 x 21 mm

Weight

210g
