4Kp30Hz Dual Video Input CamLin Video Capture Box

4Kp30Hz Dual Video Input CamLin Video Capture Box

HTS-T802-U(D)

CamLin series video capture box features：

USB3.1 Gen2(10Gbps) support dual 2160p@30Hz(NV12) / 1080p@60Hz(YUY2) / 1080p@30Hz(XRGB); USB3.0(5Gbps) support dual 1080p@60Hz(NV12) / 1080p@30Hz(YUY2), motion screen without drag.
Supports a variety of video color coding, reduce CPU load, loop out without lag, real-time synchronization of game broadcast.
Plug and play, without drive installation, USB direct connection to computer / mobile phone, 3 seconds start.
Low latency transmission, USB to PC about 60ms, sound and picture synchronization without delay.
Support the OBS / XSplit / vMix and other third-party software, Windows / Linux / Mac / iOS / Android / Harmony OS system compatible.
Product support appearance design, function increase or decrease, OEM / ODM

Categories: All Products, Capture Box Tag: CamLin

Sales Inquiry

TechSpecs

Video

Audio

Interface

Function

Support

General

Video

Resolution Capture	USB3.1 Gen2(10Gbps): Dual input 3840 x 2160(max 30fps), 1920 x 1080(max 60fps) USB3.0(5Gbps): Dual input 1920 x 1080(max 60fps) Single input: 2560 x 1440(max 60fps), 1280 x 720(max 60fps), 640 x 480(max 60fps)
Loop Out	None
Video Format	YUY2, NV12, XRGB
Color Space	Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec	PCM
Audio Input	Digital-HDMI, TRS
Audio Output	HDMI
Sampling Rate	8kHz, 16kHz, 44.1kHz, 48kHz

Interface

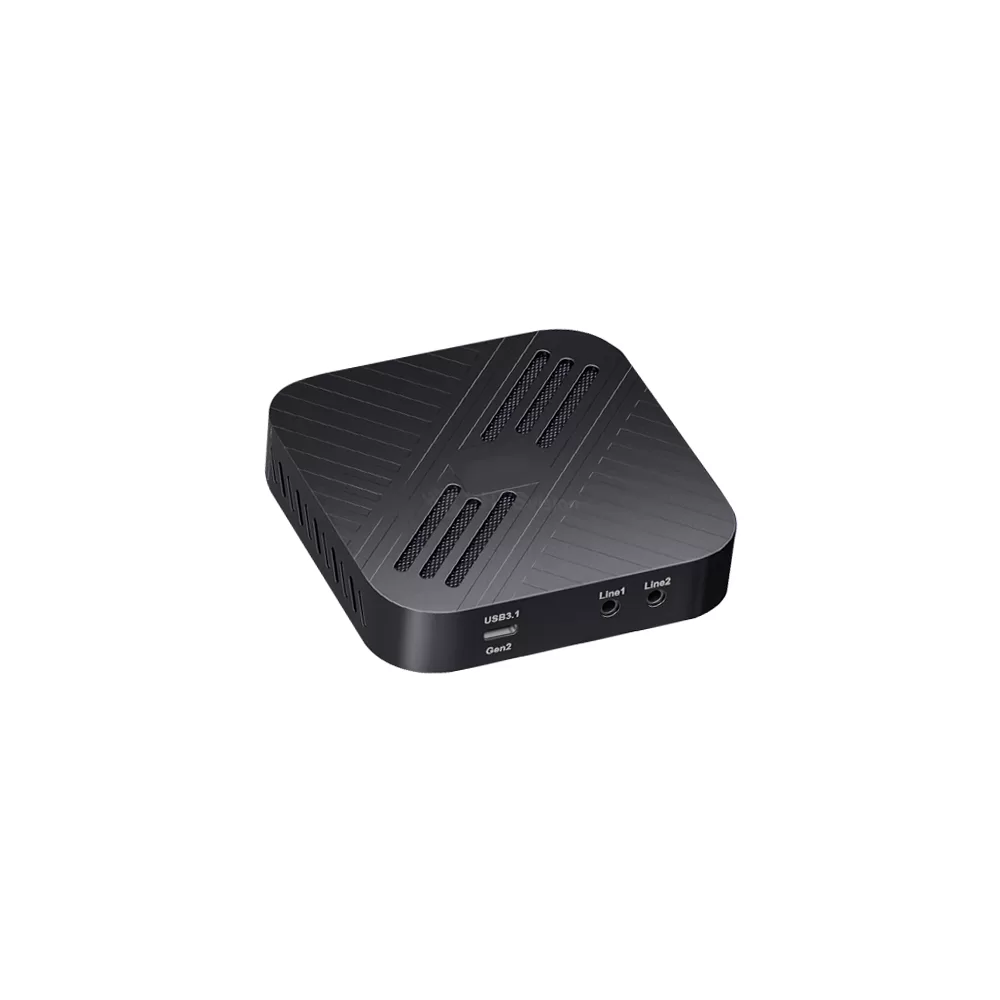

Master Control	USB Type-C

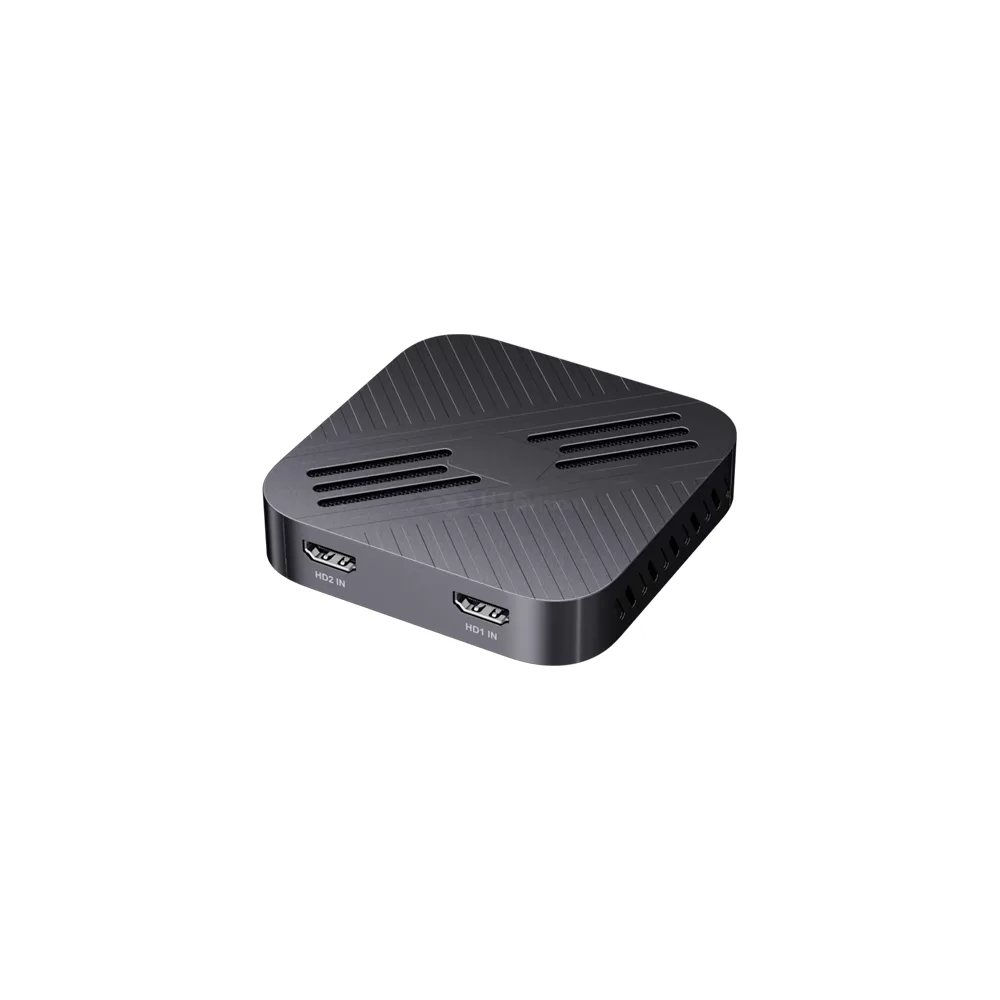

Video I/O	HDMI 2.0
Audio I/O	2 * 3.5mm Line in

Function

HDR	None
VRR	None
UVC,UAC	Support
Other Function	Fan heat dissipation
Configure Video	Support from capture software Settings
Led Light	Ordinary work light

Support

Systen Support	Windows, Linux, macOS, iOS, Harmony OS, Android etc
Software Support	OBS, vMix, XSplit etc Third-party Software
Device Support	SONY A7M4, SONY A7S3, SONY FX30, Fujifilm XH2, SONY FX3, etc Other device video signal
Service	12 months warranty
Approval	FCC, CE, RoHS (MOQ:500pcs free)

General

Power	USB 5V 2A
Material	Metal
Work Temperature	0°C to +90°C(+32°F to +194°F)
Dimension	95 x 95 x 19 mm
Weight	150 g

Video

Resolution Capture

USB3.1 Gen2(10Gbps): Dual input 3840 x 2160(max 30fps), 1920 x 1080(max 60fps)
USB3.0(5Gbps): Dual input 1920 x 1080(max 60fps)
2560 x 1440(max 60fps), 1280 x 720(max 60fps), 640 x 480(max 60fps)

Loop Out

None

Video Format

YUY2, NV12, XRGB

Color Space

Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec

PCM

Audio Input

Digital-HDMI, TRS

Audio Output

HDMI

Sampling Rate

8kHz, 16kHz, 44.1kHz, 48kHz

Interface

Master Control

USB Type-C

Video I/O

HDMI 2.0

Audio I/O

2 * 3.5mm Line in

Function

HDR

None

VRR

None

UVC,UAC

Support

Other Function

Fan heat dissipation

Configure Video

Support from capture software Settings

Led Light

Ordinary work light

Support

Systen Support

Windows, Linux, macOS, iOS, Harmony OS, Android etc

Software Support

OBS, vMix, XSplit etc Third-party Software

Device Support

SONY A7M4, SONY A7S3, SONY FX30, Fujifilm XH2, SONY FX3, etc
Other device video signal

Service

12 months warranty

Approval

FCC, CE, RoHS (MOQ:500pcs free)

General

Power

USB 5V 2A

Material

Metal

Work Temperature

0°C to +90°C(+32°F to +194°F)

Dimension

95 x 95 x 19 mm

Weight

150 g
