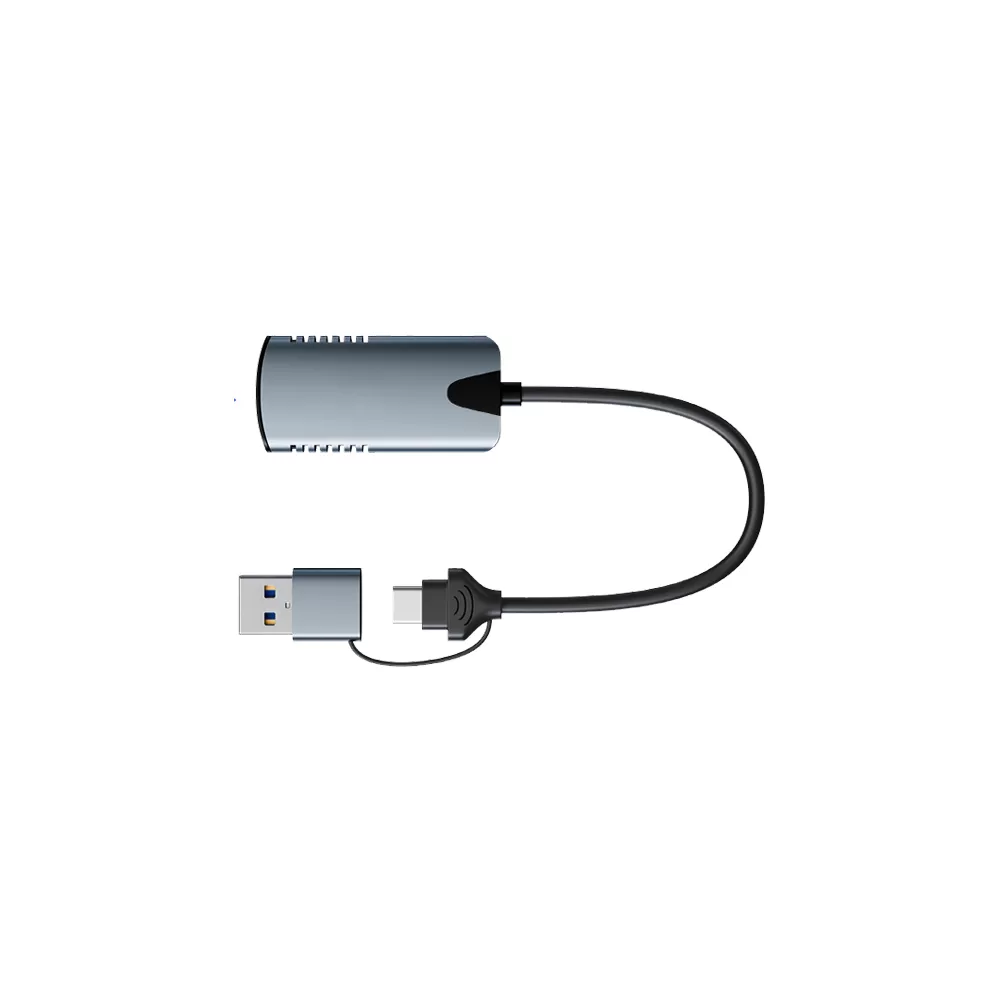

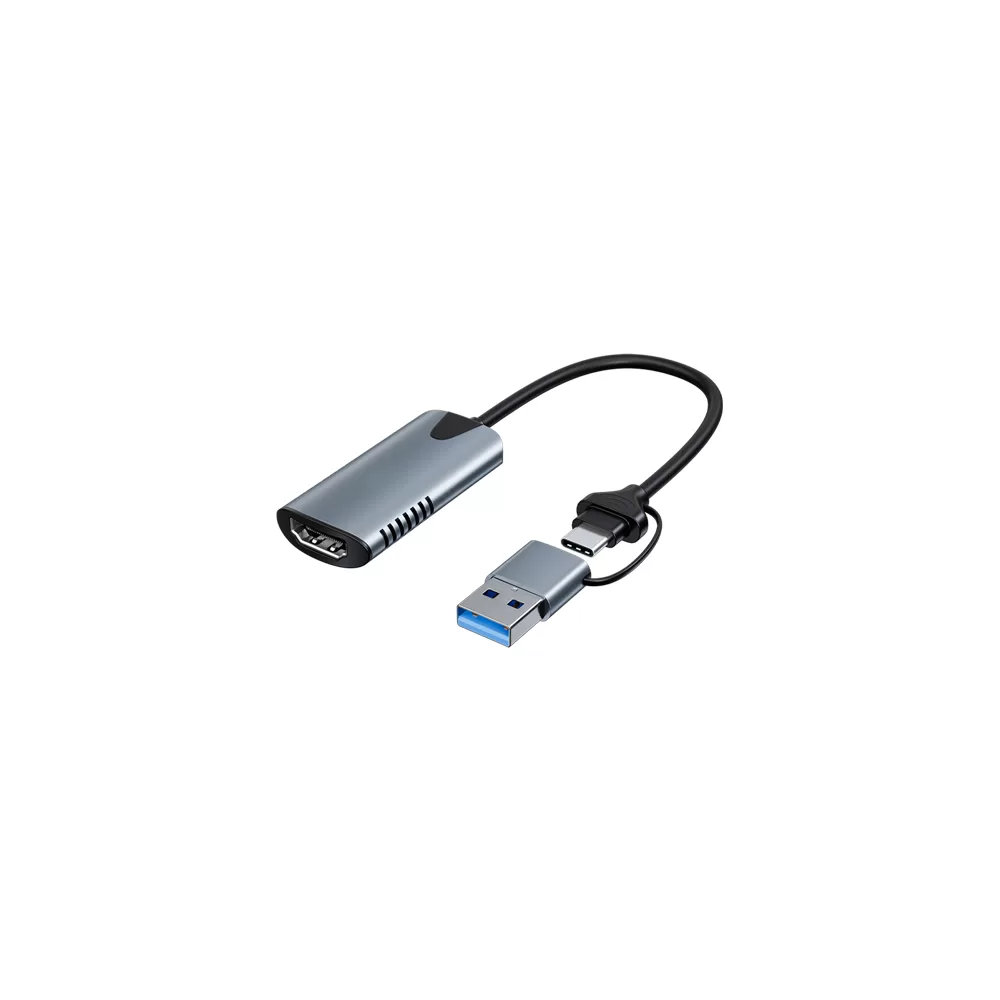

1080p60Hz Single Video Input CamLin Video Capture Box

1080p60Hz Single Video Input CamLin Video Capture Box

HTS-T200-F

CamLin series video capture box features：

Support 1080p@60Hz / 720p@60Hz / video input, game, motion screen without drag.
Supports a variety of video color coding, reduce CPU load, loop out without lag, real-time synchronization of game broadcast.
Plug and play, without drive installation, USB direct connection to computer / mobile phone, 3 seconds start.
Low latency transmission, USB to PC about 110ms, sound and picture synchronization without delay.
Support the OBS / XSplit / vMix and other third-party software, Windows / Linux / Mac / iOS / Android / Harmony OS system compatible.
Product support appearance design, function increase or decrease, OEM / ODM

Categories: All Products, Capture Box Tag: CamLin

Sales Inquiry

TechSpecs

Video

Audio

Interface

Function

Support

General

Video

Resolution Capture	1920 x 1080(max 60fps),1280 x 720(max 60fps)
Loop Out	None, support 2160p@60Hz video input
Video Format	YUY2, MJPG
Color Space	Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec	PCM
Audio Input	Digital-HDMI
Audio Output	HDMI
Sampling Rate	8kHz, 16kHz, 44.1kHz

Interface

Master Control	USB Type-C&A
Video I/O	HDMI 1.4

Function

HDR	None
VRR	None
UVC,UAC	Support
Configure Video	Support from capture software Settings

Support

Systen Support	Windows, Linux, macOS, iOS, Harmony OS, Android etc
Software Support	OBS, vMix, XSplit etc Third-party Software
Device Support	SONY A7M4, SONY A7S3, SONY FX30, Fujifilm XH2, SONY FX3, etc Other device video signal
Service	12 months warranty
Approval	FCC, CE, RoHS (MOQ:500pcs free)

General

Power	USB 5V 2A
Material	Metal, Plastic
Work Temperature	0°C to +90°C(+32°F to +194°F)
Dimension	25 x 50 x 8 mm
Weight	18 g

Video

Resolution Capture

1920 x 1080(max 60fps),1280 x 720(max 60fps)

Loop Out

None, support 2160p@60Hz video input

Video Format

YUY2, MJPG

Color Space

Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec

PCM

Audio Input

Digital-HDMI

Audio Output

HDMI

Sampling Rate

8kHz, 16kHz, 44.1kHz

Interface

Master Control

USB Type-C&A

Video I/O

HDMI 1.4

Function

HDR

None

VRR

None

UVC,UAC

Support

Configure Video

Support from capture software Settings

Support

Systen Support

Windows, Linux, macOS, iOS, Harmony OS, Android etc

Software Support

OBS, vMix, XSplit etc Third-party Software

Device Support

SONY A7M4, SONY A7S3, SONY FX30, Fujifilm XH2, SONY FX3, etc
Other device video signal

Service

12 months warranty

Approval

FCC, CE, RoHS (MOQ:500pcs free)

General

Power

USB 5V 2A

Material

Metal, Plastic

Work Temperature

0°C to +90°C(+32°F to +194°F)

Dimension

25 x 50 x 8 mm

Weight

18 g
