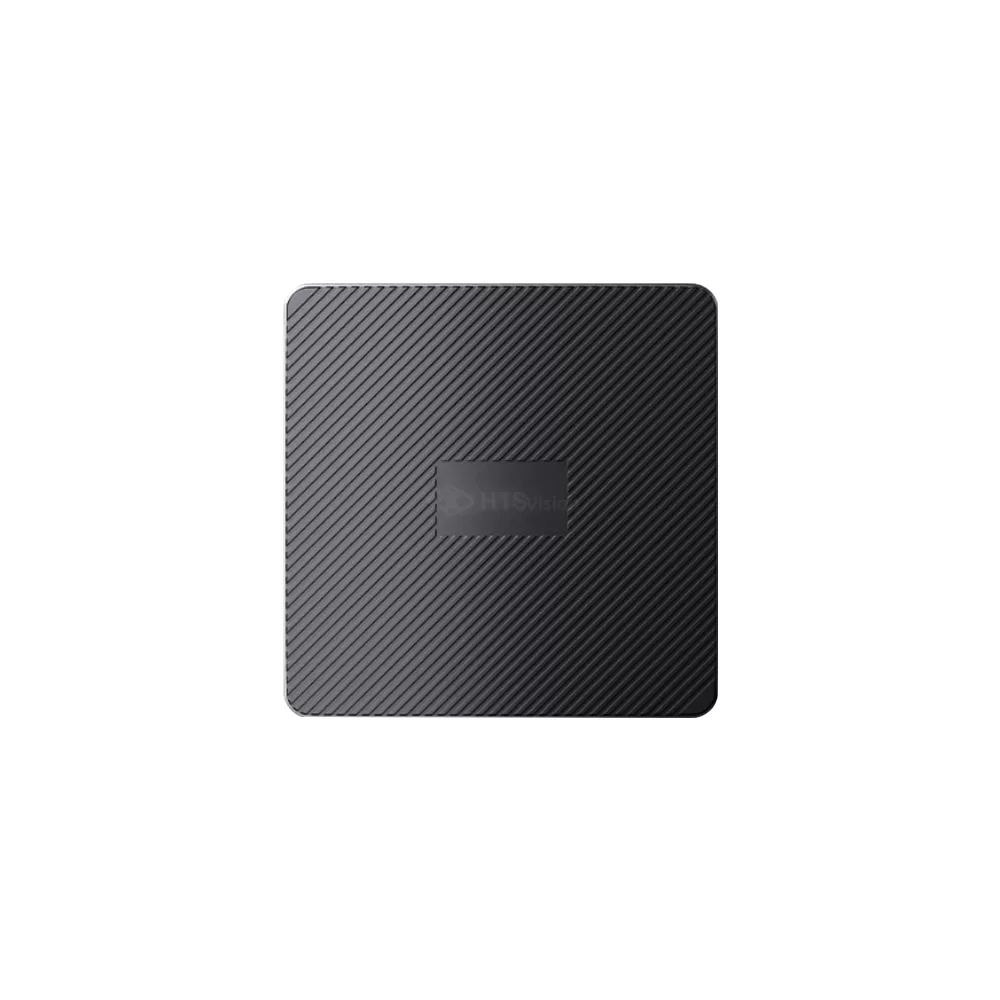

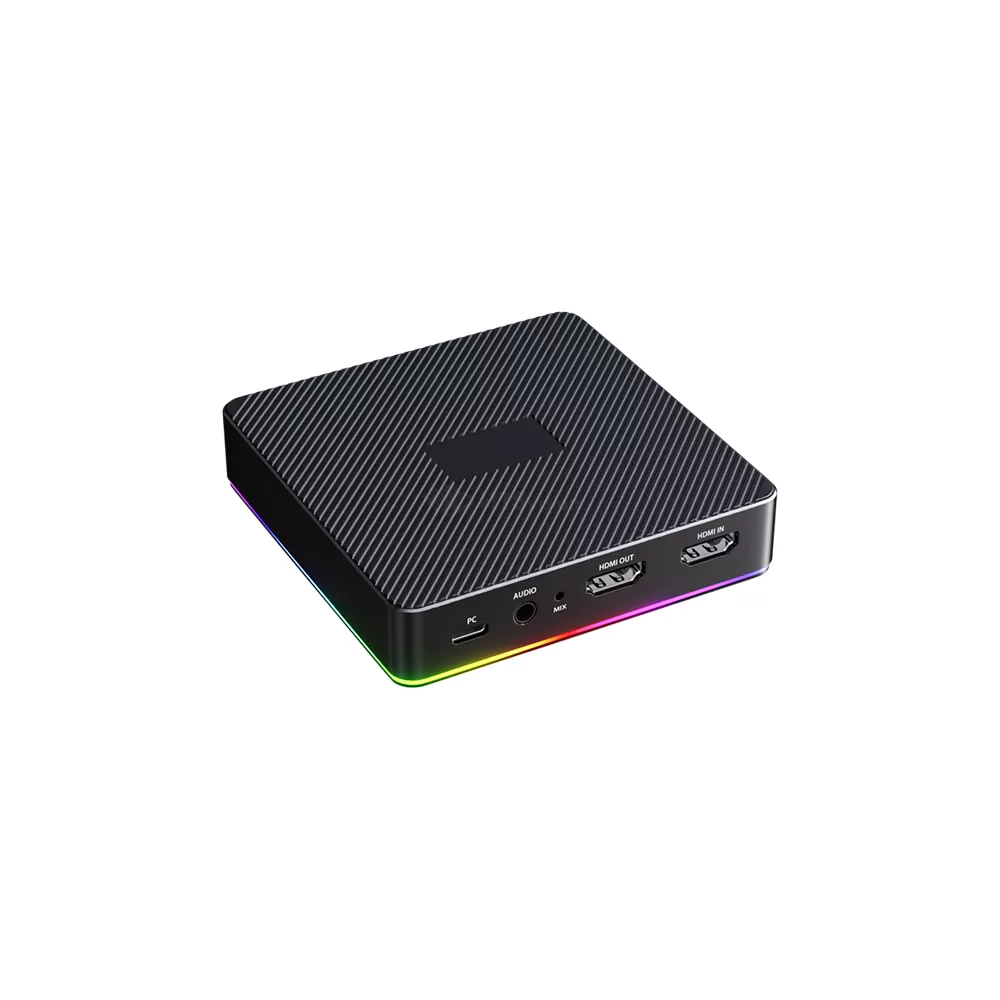

4Kp30Hz Capture and Record GamLiv Video Capture Box

4Kp30Hz Capture and Record GamLiv Video Capture Box

HTS-T800-U

GamLiv series video capture box features：

Support 2160p@30Hz / 1440p@60Hz / 1080p@120Hz input and output, game, motion screen without drag.
Supports a variety of video color coding, reduce CPU load, loop out without lag, real-time synchronization of game broadcast.
Plug and play, without drive installation, USB direct connection to computer / mobile phone, 3 seconds start.
Low latency transmission, USB to PC about 60ms, sound and picture synchronization without delay.
Support the OBS / XSplit / vMix and other third-party software, Windows / Linux / Mac / iOS / Android / Harmony OS system compatible.
Product support appearance design, function increase or decrease, OEM / ODM

Categories: All Products, Capture Box Tag: GamLiv

Sales Inquiry

TechSpecs

Video

Audio

Interface

Function

Support

General

Video

Resolution Capture	3840 x 2160(max 30fps), 2560 x 1440(max 60fps), 1920 x 1080(max 120fps) 1280 x 720(max 60fps), 640 x 480(max 60fps)
Loop Out	2160p60, 1440p60, 1080p120, 720p60, 480p60
Video Format	YUY2, P010, NV12, XRGB
Color Space	Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec	PCM
Audio Input	Digital-HDMI, CTIA
Audio Output	HDMI, CTIA
Sampling Rate	8kHz, 16kHz, 44.1kHz, 48kHz

Interface

Master Control	USB 3.0 Type-C
Video I/O	HDMI 1.4
Audio I/O	3.5mm Audio out

Function

HDR	10bit HDR record of 2160p60
VRR	None
UVC,UAC	Support
Other Function	Mix Voice Off Key
Configure Video	Support from capture software Settings
Led Light	Colorful working lights

Support

Systen Support	Windows, Linux, macOS, iOS, Harmony OS, Android etc
Software Support	OBS, vMix, XSplit etc Third-party Software
Device Support	Phone, Tablet, PC, Xbox One, Xbox Series X \| S Playstation 4, Playstation 5 Nintendo Switch Stream Deck Other camera video signal
Service	12 months warranty
Approval	FCC, CE, RoHS (MOQ:500pcs free)

General

Power	USB 5V 2A
Material	Metal, Plastic
Work Temperature	0°C to +90°C(+32°F to +194°F)
Dimension	99 x 99 x 23 mm
Weight	245 g

Video

Resolution Capture

3840 x 2160(max 30fps), 2560 x 1440(max 60fps), 1920 x 1080(max 120fps), 1280 x 720(max 60fps), 640 x 480(max 60fps)

Loop Out

2160p60(HDR), 1440p60, 1080p120, 720p60, 480p60

Video Format

YUY2, P010, NV12, XRGB

Color Space

Rec.709, Rec.601, Rec.2100(PQ), Rec.2100(HLG)

Audio

Audio Codec

PCM

Audio Input

Digital-HDMI, CTIA

Audio Output

HDMI, CTIA

Sampling Rate

8kHz, 16kHz, 44.1kHz, 48kHz

Interface

Master Control

USB 3.0 Type-C

Video I/O

HDMI 1.4

Audio I/O

3.5mm Audio out

Function

HDR

10bit HDR record of 2160p60

VRR

None

UVC,UAC

Support

Other Function

Mix Voice Off Key

Configure Video

Support from capture software Settings

Led Light

Colorful working lights

Support

Systen Support

Windows, Linux, macOS, iOS, Harmony OS, Android etc

Software Support

OBS, vMix, XSplit etc Third-party Software

Device Support

Phone, Tablet, PC, Xbox One, Xbox Series X | S
Playstation 4, Playstation 5
Nintendo Switch
Stream Deck
Other camera video signal

Service

12 months warranty

Approval

FCC, CE, RoHS (MOQ:500pcs free)

General

Power

USB 5V 2A

Material

Metal, Plastic

Work Temperature

0°C to +90°C(+32°F to +194°F)

Dimension

99 x 99 x 23 mm

Weight

245 g

* HDMI, HDMI High-Definition Multimedia Interface, HDMI commercial appearance, and HDMI logo are HDMI Licensing Administrator, Inc.‘s trademark or registered trademark.
